Eleaf iSmoka iStick Pico 25 - 85W TC Full Kit (w/ ELLO)
As a subsidiary of the renowned Joyetech Company, Eleaf has been an integral part of the vaping revolution. Most notable for their fantastically popular iStick line of box MODs and Eleaf vape kits, this brand is certainly a household name within the vaping community. The Eleaf iStick collection of devices has enjoyed multiple additions, each of which is masterfully designed and engineered to offer a truly enjoyable vaping experience. In line with this commitment to unparalleled excellence, Eleaf has released the latest in this legendary series—the iStick Pico 25 Kit. Representing a flawless pairing between the iStick Pico 25 MOD and the exceptionally well-performing Ello MOD, this setup provides for staggering vapor production, along with rich and flavorful hits.
Eleaf iStick Pico 25 MOD:

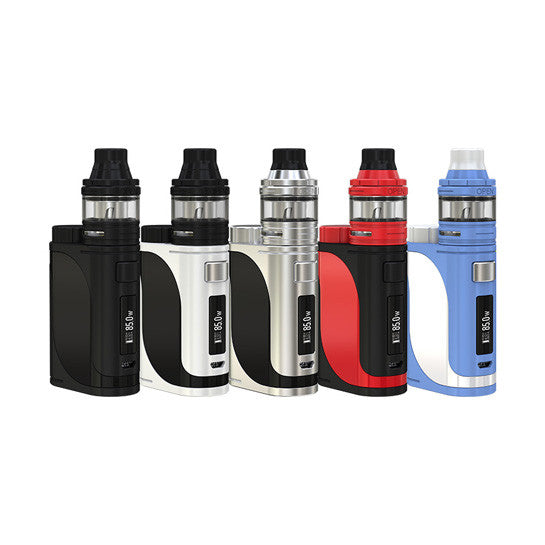

The power and brains behind this phenomenal kit is the robust Eleaf iStick Pico 25 MOD. As is the case with the entire Eleaf iStick collection, this exceptional device is expertly engineered, masterfully designed, and furnished with a chip that affords an impressive array of features and capabilities. Available in multiple gorgeous color combinations, the iStick Pico 25 MOD is as beautiful as it is well-performing.
The body and frame of the Eleaf iStick Pico 25 MOD is constructed with premium aluminum-zinc alloy. Although aluminum and zinc are the primary components of this metal, it is also blended with various other materials, including magnesium and copper, collectively delivering characteristics that are ideal for devices such as performance Eleaf mods. As a result, the iStick Pico 25 is incredibly strong, sturdy, and enduring, while remaining surprisingly light in weight. The spring-loaded, self-adjusting contact pin is made with 304-grade stainless steel, and automatically adjusts in order to provide a secure connection between the iStick Pico 25 and any tank you wish to use with it.
One of the primary capacities afforded by the Eleaf iStick Pico 25 MOD is its variable wattage functionality. By employing the operation buttons located at the top of the device, this phenomenal MOD permits you to regulate the amount of power that is released to the atomizer. You can set the Eleaf iStick Pico 25 to unleash wattage as low as 1W and as high as a hefty 85W, in 0.1W increments. This wide range of power at your fingertips enables you to pair the iStick Pico 25 with atomizer coil resistances between 0.1 ohms and 3.5 ohms.
In addition to your ability to fine-tune the iStick Pico 25 MOD’s output power, this exceptional device also affords you the ability to regulate the atomizer coil’s temperature as well. When used with an atomizer containing a nickel, titanium, or stainless steel coils, you are able to adjust and set the temperature of the coil itself. In doing so, you will be permitted to customize the temperature of the produced vapor, while concurrently eliminating the possibility of dry or burnt hits.
The face of the Eleaf iStick Pico 25 Box MOD features a state-of-the-art OLED screen, which very clearly and vividly displays a vast array of critical data, all of which is designed to help you monitor and operate your device efficiently and conveniently. By pressing any of the MOD’s buttons to activate the screen, you can digitally view the temperature setting, the output wattage the output voltage, the output current, the resistance of the atomizer coil, the remaining battery life, and any errors that may arise while the iStick Pico 25 is being used. This vast range of chief information available to you at all times ensures easy and optimal performance.
Eleaf judiciously designed the iStick Pico 25 to accommodate a single external 18650 battery (sold separately). Compared to devices containing a permanent internal battery, the iStick Pico 25’s removable battery offers certain critical advantages. Due to the fact that all rechargeable batteries will be unable to contain a charge after a certain number of cycles, once this inevitably occurs with internal-battery devices, you will be forced to discard the entire unit, whereas the iStick Pico 25 affords you the ability to replace solely the battery itself. This is, of course, a substantially less costly option. Furthermore, the capacity to interchange batteries also enables you to carry charged spares with you in case the one in use dies while you’re out and about.

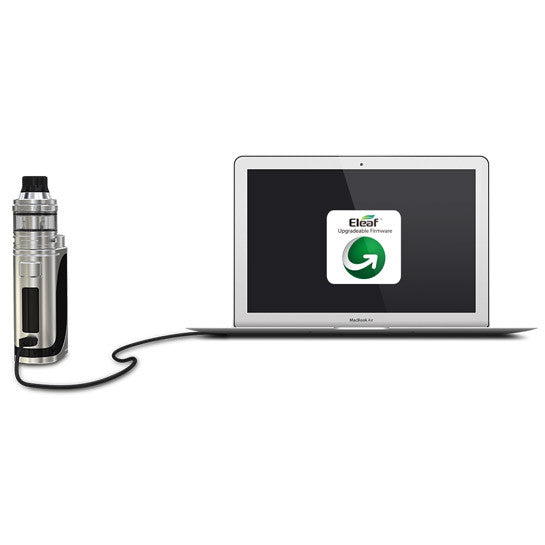

In addition, Eleaf engineered the iStick Pico 25 MOD with firmware upgradability, which helps keep your device up-to-date. Utilizing the included cable, you can effortlessly connect the iStick Pico 25 to any computer and download the most recent firmware version, as it is released by the manufacturer. In doing so, you can ensure that your device is always kept current with the most recent technologies and bug fixes.
Eleaf Ello Tank:
No good kit is complete without a performance tank, and Eleaf vape tanks are among the very best. Included within the iStick Pico 25 Kit is the remarkable Ello Tank. Meticulously crafted by Eleaf’s expert designers and engineers, this tank is a phenomenal performer. The Ello Tank is configured to match seamlessly with the iStick Pico 25 MOD both in appearance as well as functionality. Collectively, you will enjoy satisfying vapor production, coupled with intense and robust flavor that will bring your e-juices to life.
The Eleaf Ello Tank is made using ultra-premium materials, to help provide for longevity and resilience. The body, frame, and chassis of this marvelous tank is fabricated with top-shelf 304-grade stainless steel, which represents an exclusive grouping of metals. Stainless steel, nickel, chromium, and manganese are combined to result in an alloy that is incredibly solid, durable, and resistant to rust and corrosion. These qualities make 304 stainless steel an ideal material for a performance tank, such as the Eleaf Ello.
To house the tank’s vape juice, the Eleaf Ello is furnished with a premium Pyrex (borosilicate) glass basin. Eleaf made a calculated decision to fabricate the 2ml reservoir with glass rather than plastic, as it provides for certain central advantages that cannot be enjoyed with plastic counterparts. Unlike plastic, which is susceptible to erosion due to the acidic composition of e-liquid, glass tanks are entirely impervious to the acidity. With no plastic seeping into the e-juice, the Ello will deliver a noticeably cleaner, purer, and truer taste when compared to plastic tanks.
The base of the Eleaf Ello Tank features a top-of-the-line dual-adjustable airflow control valve. By utilizing the rotating adjustment wheel encompassing the valve, you can accurately fine-tune the amount of air that enters the tank during use. As a result, the Ello affords you the ability to customize your vaping experience, allowing for tighter or airier hits, according to your needs and preferences. Moreover, the capacity to regulate the Ello Tank’s air intake is also very beneficial, as it helps eliminate flooding and gurgling when alternating between various e-juices with different vegetable glycerin (VG) levels.

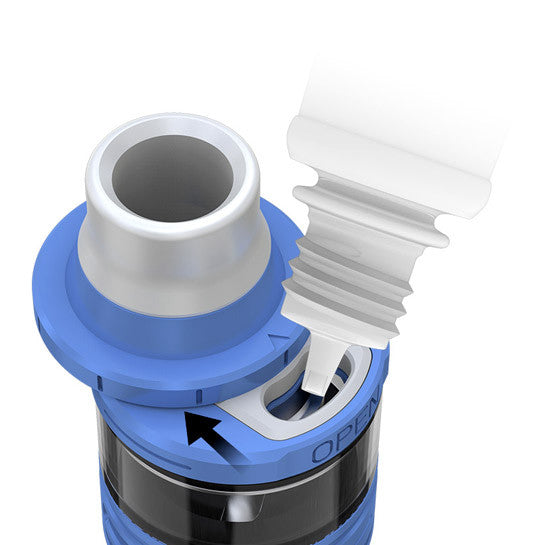

Perhaps the most innovative and ingenious characteristic of the Eleaf Ello Tank is its revolutionary top-fill e-juice system. Rather than being required to separate the tank from the battery in order to remove the base each time more e-liquid is needed, the Eleaf Ello Tank can be effortlessly refilled directly from the top without necessitating detachment form the battery. However, unlike the vast majority of other top-fill systems available, accessing the Ello Tank’s juice port does not entail removing the top-cap either. Rather, the device’s top-cap operates with a groundbreaking lock-and-hinge system, which permits you to swing it open and shut, thereby making refills unequivocally swift, expedient, and mess-free.
Eleaf brilliantly designed the Ello Tank so that it can be completely disassembled. The capability of separating each and every component from the others is extremely useful, as it enables you to freely access the smallest nooks and crannies of each individual part. As a result, you can ensure that your Ello Tank will always be kept immaculately clean and performing optimally. Moreover, the ability to remove and replace the Ello’s drip tip affords you the ability to utilize various mouthpieces, according to your personal preferences.
In all forms and measures, the Eleaf iStick Pico 25 Kit is a truly well-performing and impressive setup. Furnished with all of the latest technologies and capabilities you can ask for, this fantastic kit is sure to please vapers at all skill levels.
NOTE: Battery Sold Separately
Download the Eleaf iStick Pico 25 Kit User Manual
Purchase Replacement Atomizer Coils
QUICK GUIDE |
|
HIT TYPE: |
Direct-to-Lung |
SKILL LEVEL: |
Intermediate, Advanced |
BEST E-JUICE |
50% or Higher VG |
BATTERY TYPE: |
External (Sold Separately) |
Eleaf iStick Pico 25 MOD Specifications:
Manufactured by: Eleaf iSmoka
Threading: 510
Body Material: Aluminum-Zinc Metal Alloy
Pin Material: Stainless Steel
Wattage Range: 1W – 85W
Temperature Range: 200°F - 600°F (100°C - 315°C)
Resistance Range (Wattage Mode): 0.1 Ohms – 3.5 Ohms
Resistance Range (Temperature Mode): 0.05 Ohms – 1.5 Ohms
Maximum Charging Current: 2A
Maximum Output Current: 50A
Battery Compatibility: Single High-Rate 18650 Battery (Sold Separately)
Operating Modes: VW / TC / Bypass
Height: 2.77 Inches (70.5mm)
Width: 0.98 Inches (25mm)
Depth: 1.89 Inches (48mm)
Eleaf Ello Tank Specifications:
Manufactured by: Eleaf iSmoka
Threading: 510
Body Material: 304 Stainless Steel
Tank material: Pyrex (Borosilicate) Glass
E-Juice Capacity: 2ml
Filling Type: Top-Fill
Height: 1.81 Inches (46mm)
Diameter: 0.98 Inches (25mm)
Eleaf iStick Pico 25 Kit Includes:
1 x Eleaf iStick Pico 25 Box MOD
1 x Eleaf Ello Tank
1 x Eleaf HW1 Single-Cylinder Atomizer Coil (0.2 Ohms)
1 x Eleaf HW2 Dual-Cylinder Atomizer Coil (0.3 Ohms)
1 x Extention Glass Tube (4 ml)
2 x Drip Tips
1 x QC USB Cable
1 x Bag of Spare Parts
1 x User Manual
Eleaf iStick Pico 25 MOD Features:
Variable Wattage Capability
Temperature Control, Sensing, and Limiting Functionality
Operates with an External 18650 Battery (Sold Separately)

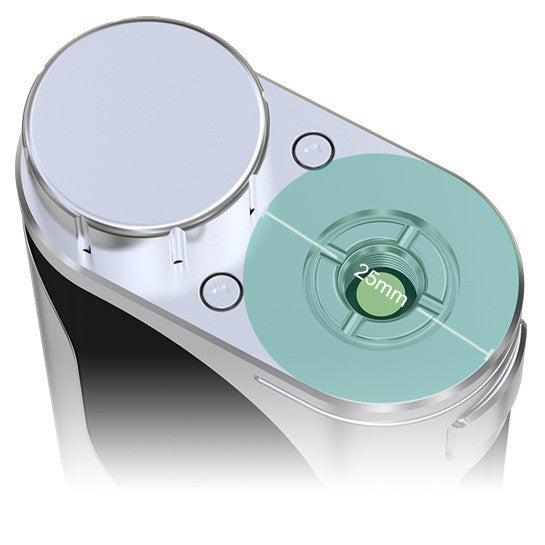

Self-Adjusting, Spring-Loaded Contact Pin
High-Quality OLED Screen
Built-In Ohms Meter
Battery Level Indicator
Bypass Mode Capable
Pre-Heat Functionality
Three Memory Modes Available
2A Quick-Charge Capability
Upgradable Firmware
Dual-Circuit Protection
Reverse-Polarity Protection
Over-Charge Protection
Over-Discharge Protection
Extremely Sleek and Stylish Design
Made with High-Quality Materials
Exceptionally Easy-to-Use
100% Authentic Eleaf
Eleaf Ello Tank Features:
Pyrex (Borosilicate) Glass E-Juice Basin
Made with Premium 304 Stainless Steel
Innovative Top-Fill E-Juice System
Swinging Top-Cap for Easy Juice Port Access
Comes with Two Drip Tips
Dual-Adjustable Airflow Control Valve
Tank Can Be Entirely Disassembled
Multiple Atomizer Coils Available
Coils Contain Organic Cotton Wicks
Delivers Rich and Flavorful Taste
Manufactures Large Vapor Clouds
100% Authentic Eleaf
How to Turn On/Off the Eleaf iStick Pico MOD:
1. Make sure that you have installed the 18650 battery properly.
2. To turn on the iStick Pico MOD, simply click the fire button 5 times rapidly. Please note that you must click the button rapidly in order for it to turn on. To turn the iStick Pico off, click the fire button 5 times again.
How to Fill the Eleaf Melo III Mini Tank:
1. Unscrew the top cap and lift it out. This will expose the e-juice reservoir.
2. Pour in the e-juice.
3. Screw the top cap back on.
How to Change the Eleaf Melo III Mini Atomizer Coil:
1. First, rotate the tank so that the mouthpiece is aimed at the floor.
2. Next, detach the base of the tank (the battery end) from the tank by unscrewing it in a counterclockwise direction.
3. Next, remove the old atomizer coil by unscrewing it in a counterclockwise direction.
4. Then, attach the new atomizer coil to the base by screwing it on in a clockwise direction.
5. Prime the new atomizer coil by adding a few drops of e-juice on the dry cotton.
6. Finally, attach the base back onto the tank by screwing it on in a clockwise direction.
7. You can now attach the tank onto your battery for use.
